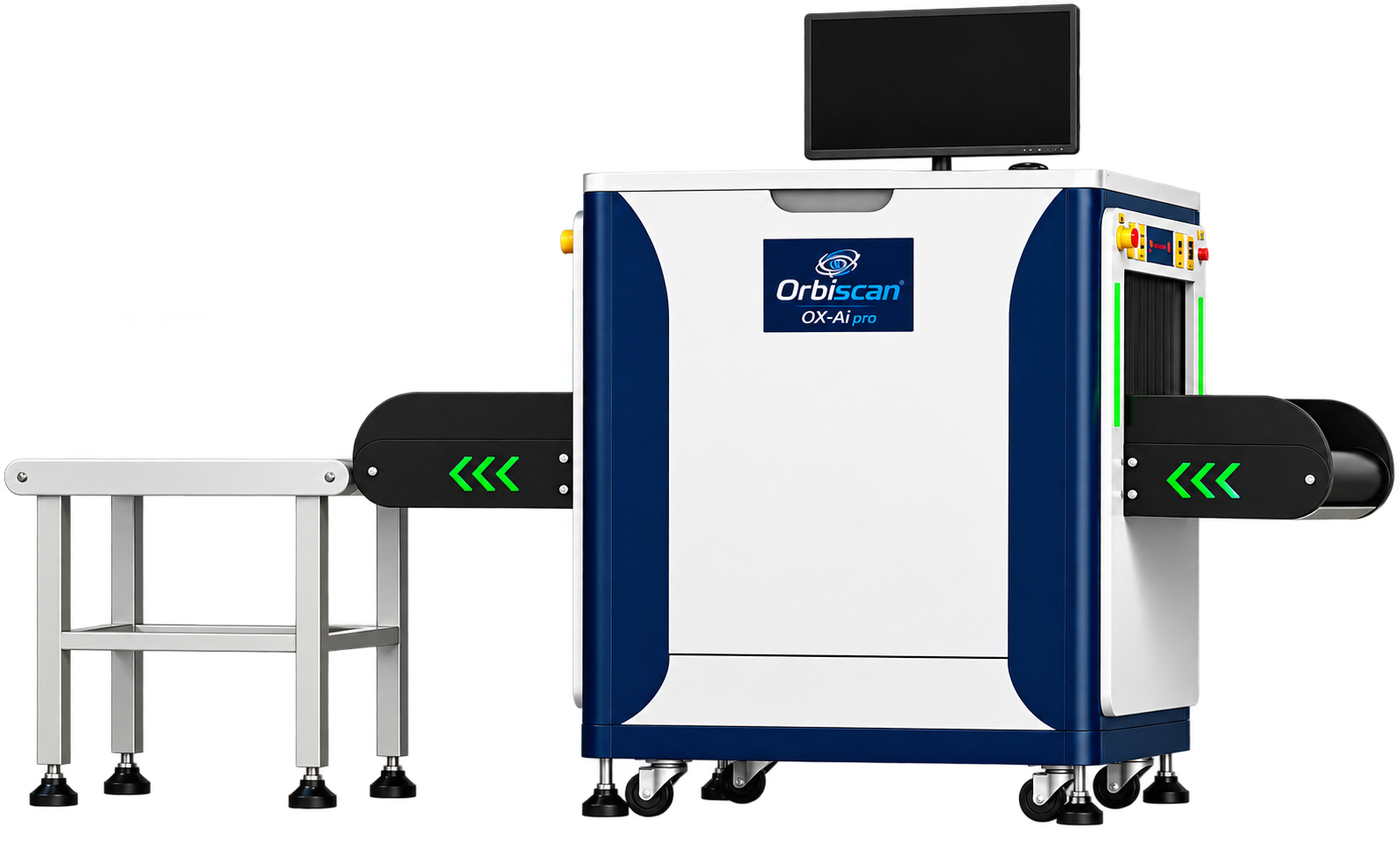

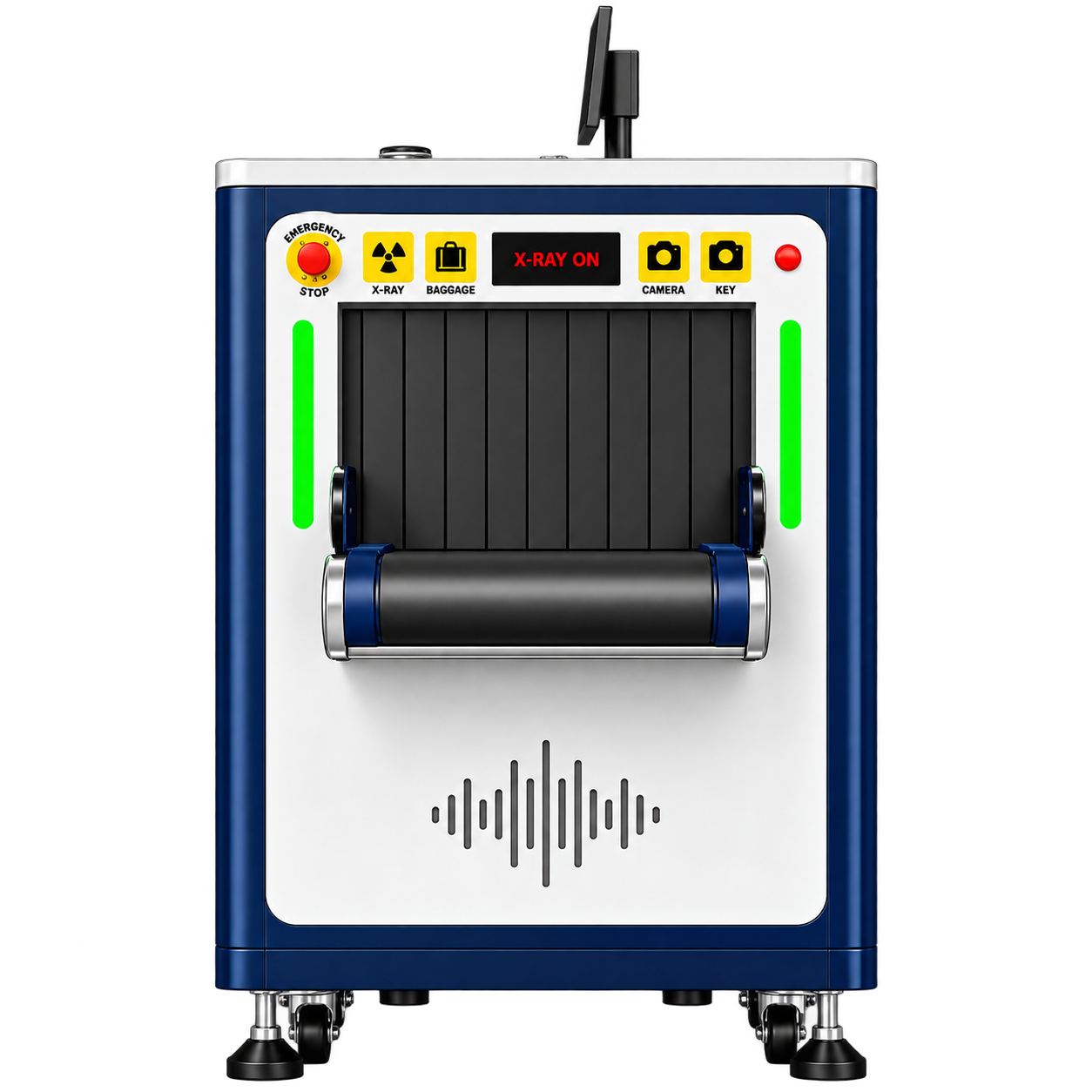

Orbiscan OX-Ai Pro – Advanced AI-Assisted X-Ray Security Screening System
The Orbiscan OX-Ai Pro is a professional X-ray inspection system engineered for accurate, efficient, and continuous security screening. Designed for demanding and high-traffic environments, it combines high-definition imaging, intuitive operation, robust construction, and enhanced safety features in a modern security screening platform. OX-Ai pro
The system features a 500 × 300 mm (W × H) inspection tunnel and supports loads of up to 150 kg (330 lbs). Its conveyor operates at approximately 0.22 m/s, making it suitable for efficient inspection of bags, parcels, documents, personal belongings, and small packages. OX-Ai pro OX-Ai pro
For detailed inspection, the OX-Ai Pro provides advanced X-ray imaging with up to 64× smart zoom, 7-color imaging, 4096 grey levels, organic/inorganic material display, high/low/super penetration functions, image recall, storage, and processing tools. The system can store more than 500,000 images, supporting effective security operations and image management. OX-Ai pro
An optional AI-assisted threat recognition capability can further support security operators in identifying suspicious items. The system also provides enhanced image-analysis assistance for potential explosives and narcotics identification. OX-Ai pro OX-Ai pro
Key Features
- 500 × 300 mm inspection tunnel
- Optional AI-assisted threat recognition
- Explosives & narcotics identification assistance
- High-definition X-ray imaging
- Up to 64× smart zoom
- 7-color imaging / 4096 grey levels
- Organic and inorganic material display
- High, low and super penetration modes
- Bidirectional scanning
- More than 500,000-image storage capacity
- Maximum conveyor load of 150 kg
- Approx. 0.22 m/s conveyor speed
- Low X-ray leakage design
- 3-inch intelligent tunnel display
- LED directional arrow indicators
- Optional CCTV monitoring
- SDK integration and customization support
The OX-Ai Pro is suitable for mail and parcel screening, public-area security, executive offices, VIP and diplomatic facilities, conferences, events, controlled-access locations, and other high-risk security environments. OX-Ai pro
Product Brochure: OX-Ai pro
